পণ্যের বিবরণ:
প্রদান:
|
| উপাদান: | গ্যালভানাইজড ইস্পাত তার | আবেদন: | নিরাপত্তা বেষ্টনী |
|---|---|---|---|
| টাইপ: | প্রসারিত জাল | রঙ: | সিলভার |
| ব্যবহার: | নির্মাণ | বৈশিষ্ট্য: | জারা প্রতিরোধের, টেকসই, সহজে একত্রিত |
| সারফেস ট্রিটমেন্ট: | গরম ডুবানো গ্যালভানাইজড | আকার: | আপনার প্রয়োজনীয়তা হিসাবে |
| ইমেইল: | devin@industrialmetalmesh.com | হোয়াটসঅ্যাপ: | +8615369013183 |
| বিশেষভাবে তুলে ধরা: | concertina razor wire fencing,anti-climb welded mesh,razor wire security barrier |
||

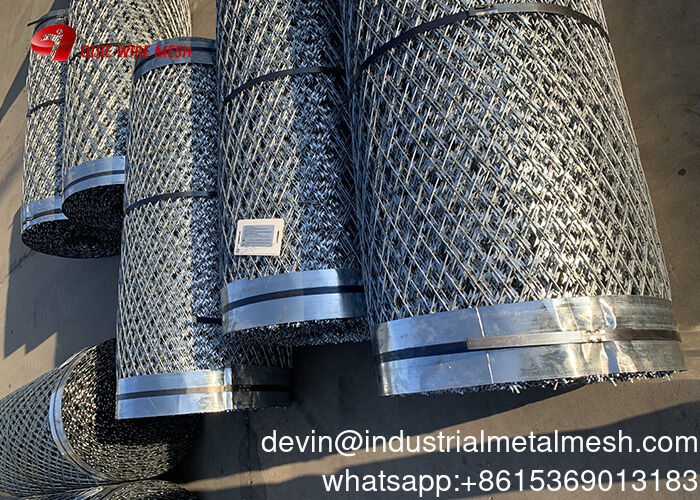

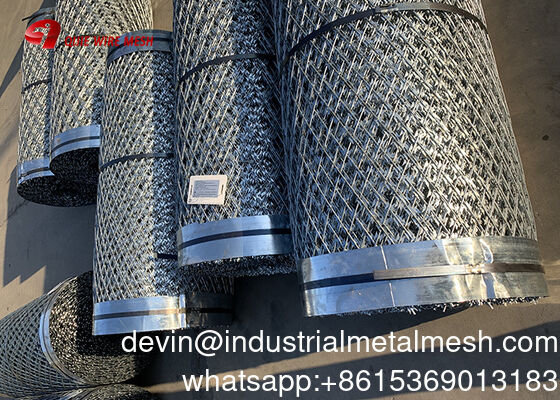

Concertina Razor Wire Welded Mesh for Anti-Climb Fencing
Diamond Blade Barbed Wire Netting Is A Common Barbed Wire Netting, Which Is Composed Of Steel Wire Rope And Diamond Blades. The Blades Of The Diamond-Shaped Razor Barbed Wire Netting Are Diamond-Shaped, And The Distance Between The Blades Is Equal, Which Can Provide Efficient Safety Protection.
Rhombus Razor Barbed Wire Net Is A Kind Of Safety Protection Facility, Which Is Composed Of a Steel Wire Rope And a Rhombus Blade. The Blades Of The Diamond-Shaped Razor Barbed Wire Netting Are Diamond-Shaped, And The Distance Between The Blades Is Equal, Which Can Provide Efficient Safety Protection.
Diamond-Shaped Razor Wire Netting Is Usually Used In Buildings, Factories, Warehouses, Facilities, Transportation Facilities, Public Facilities, And Other Fields, Which Can Effectively Prevent Criminals From Climbing Or Entering Without Authorization, And Provide Efficient Security Protection.
The Advantages Of Diamond-Shaped Razor Barbed Wire Include Sharp Blades, Elegant Appearance, Corrosion Resistance, Flexible Installation, And High Reliability. It Is A Very Practical Safety Fence.
Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an
aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)
| Welded Razor mesh fence | ||||||||
| Name | Core Wire | Sheet | Razor Style | Mesh Aperture | Finished | Size | Package | |
| Welded Razor Mesh | 2.5±0.05mm | 0.5±0.03 mm | BTO-22 BTO-28 BTO-30 |
75X150mm 150X300mm as standard |
HDG or PC coated |
1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m |
In roll or pallet | |
| Name | Welded Razor Mesh Specification | |||
| Welded Razor Mesh | Core Wire | Razor Strip (sheet) | Square Razor Mesh Size | Diamond Razor Mesh Size |
| 2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L |
0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L |
50 × 150 mm 75 × 150 mm 100x150 mm |
75 × 150 mm 150 × 300 mm |
|
| Other Mesh Sizes According to Customers' requirement | ||||
![]()
Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.
![]()
Application:
![]()

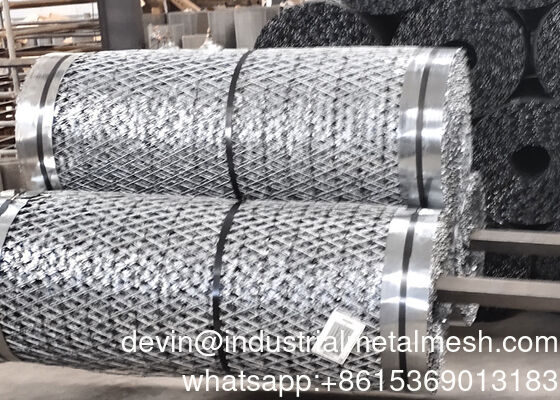

Packing:
1. Packing will be different based on the client's request.
2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box
![]()
![]()
![]()
![]()
ব্যক্তি যোগাযোগ: Mr. Devin Wang
ফ্যাক্স: 86-318-7896133
